EmNav NAVIGATOR

Analog Navigation Instrument

EmNav NAVIGATOR

$189.00

Analog aid for training and emergency backup — not a certified primary navigation system. Drawings are representative; production disks may change.

Made to order. Typically ships in 3–5 business days.

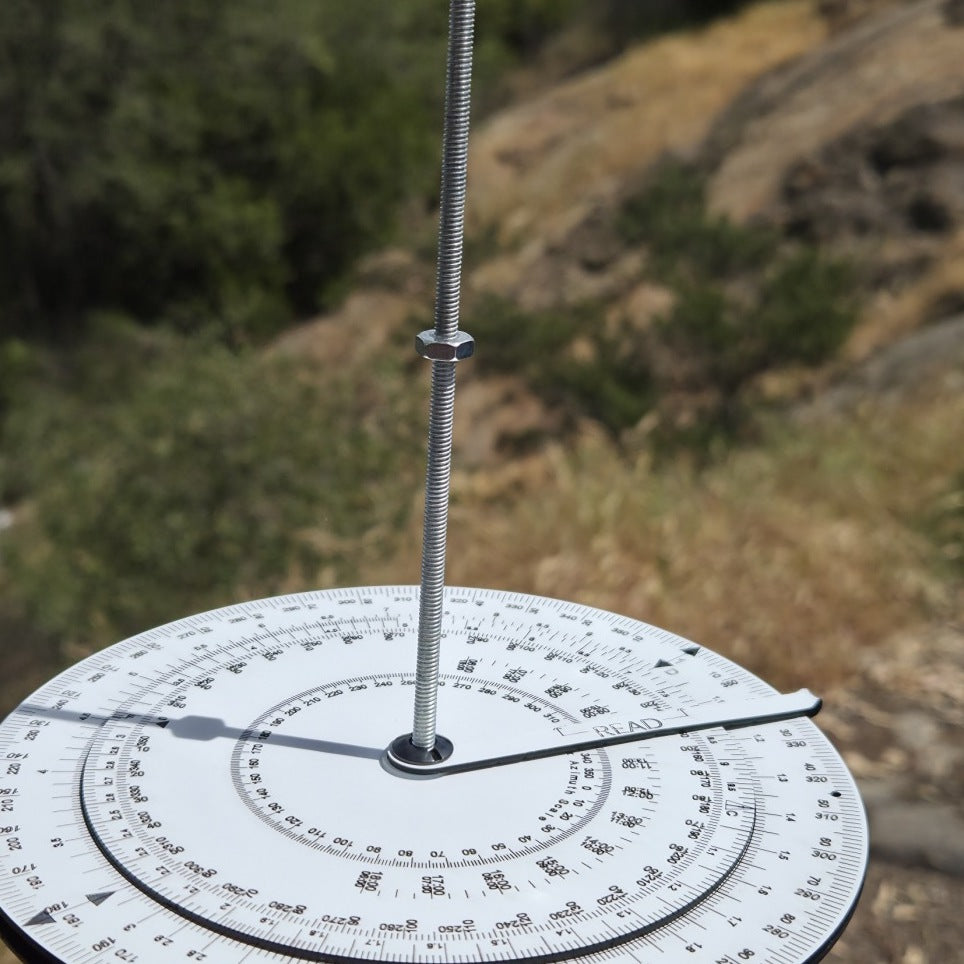

A 5.95-inch laser-engraved circular instrument that combines a Bagnold-style sun compass, logarithmic C and D scales, deliberate-offset math, a clinometer, and an Equation of Time / sun-declination plot in one pocket disk set.

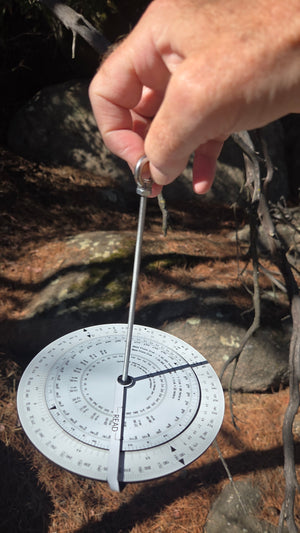

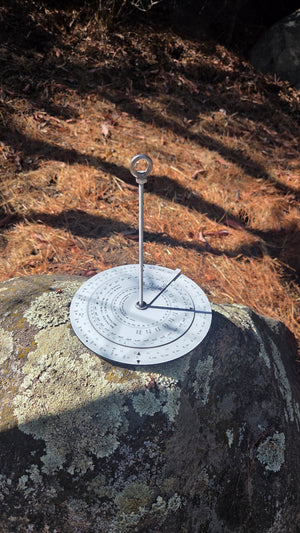

The NAVIGATOR is the full EmNav system: a Base Disk, a 4.5-inch inner small disk, and dual index arms. Rotate the inner disk to multiply, divide, convert, and chain land-nav problems the way a circular slide rule always has — then hang it from the gnomon eyelet and steer by the sun. When GPS dies or you simply want a backup that cannot be jammed, this is the instrument you reach for.

Preview the manual. (Full PDF emailed with the disks). Printed copy sold separately.

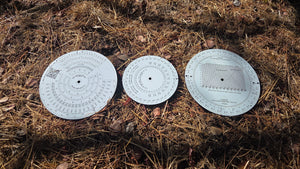

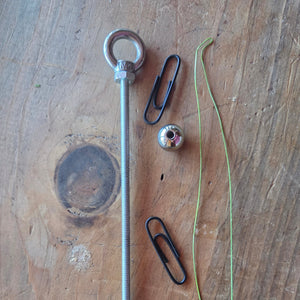

What's in the package

  • 5.95 in laser-engraved ABS Base Disk (front and back scales)
  • 4.5 in inner disk with C scale, clock scale, and back-azimuth
  • Dual index arms with READ marks
  • Center gnomon screw, leveling eyelet, and 45° secondary gnomon hole
  • Small gnomon to pair with the plumb-bob
  • Plumb-bob weight
  • Spare hardware
  • Field manual PDF emailed with the order
  • Spare kit sold separately.

Specs

  • Base disk: 5.95 in (151 mm)
  • Inner disk: 4.5 in (114 mm)
  • Material: high-contrast engraved ABS
  • Markings: permanent laser engrave — will not rub off
  • Environment: waterproof, washable, fuel-resistant
  • Power: none. Ever!
  • Origin: small-batch, Made in the USA
  • Write-on the face: pencil notes wipe clean

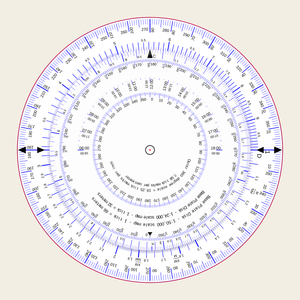

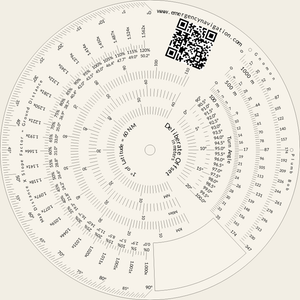

Scales on the face

  • Forward and reverse 360° (two sets)

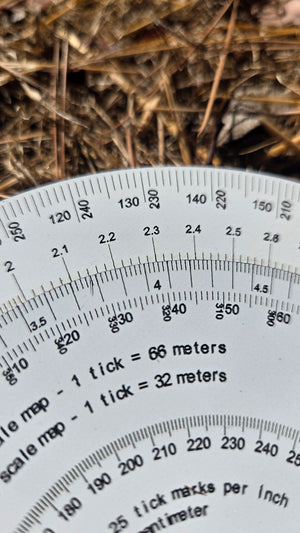

  • Standard C and D logarithmic scales
  • Forward and reverse 12-hour solar clock (15°/hour)
  • Independent back-azimuth scale

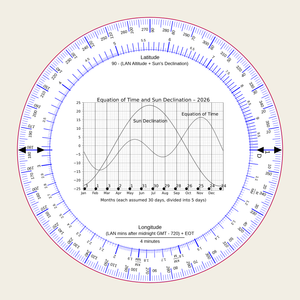

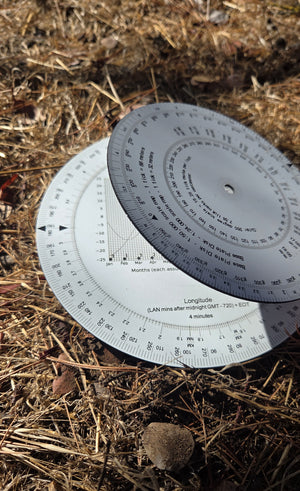

  • Sun declination and Equation of Time plot (under inner disk)
  • Full-moon dates for moon-compass use

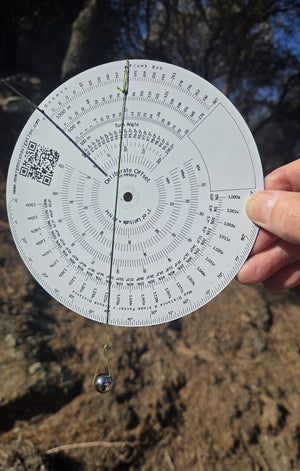

  • Deliberate offset and turn-angle scales
  • KM / mile / nautical mile conversion cursors
  • Slope factor (percent grade and angle)
  • Sun altitude and clinometer
  • Latitude and longitude formulas
  • General purpose edge ruler: 19.25 ticks/inch, 7.58 ticks/cm

Who it is for

  • Land navigation enthusiasts
  • Preppers who want a navigation backup that does not depend on GPS, batteries, or a firmware update
  • SERE instructors and military navigators
  • Hikers, overlanders, and sailors who already carry a compass and want a backup navigation method
  • Anyone who wants to travel by the Sun and not by electrons

Not certified marine, aviation, survey, or SAR equipment. Educational instrument. Cross-check anything that matters.
